266GD12 Transformer with Wires — 12V / 0.7A or 6V / 1.4A, 117/234V Input, Chassis Mount

Description

• Primary 117/234 VAC 50/60 Hz.
• All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 series.

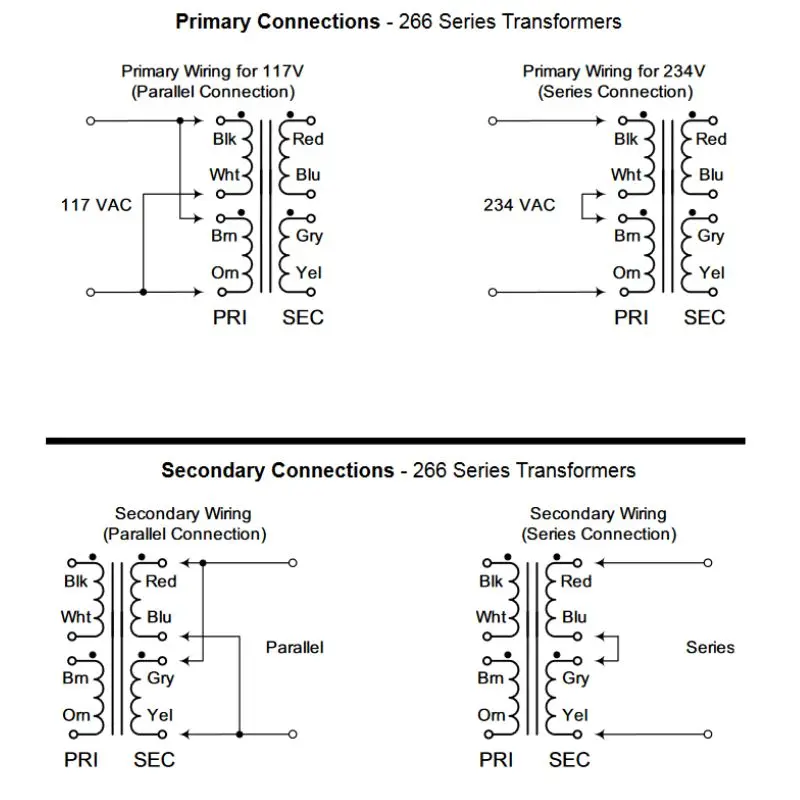

• Secondaries can be used as; a center tapped secondary parallel connected or used individually (except 266LA25).
• Units are designed for use with all windings engaged.
• Open style.
• Minimum 6 long leads.
• Dual bobbin design no electrostatic shield required.
• We use Class B insulation (130 degrees C) for extra protection UL listed as a Class A (105 degree C) design
• HiPot test of 2 000V RMS.
• UL listed (# E207860) Type 3AH
• CSA certified (209651)
