Description
| Specifications | Range | Best Accuracy |

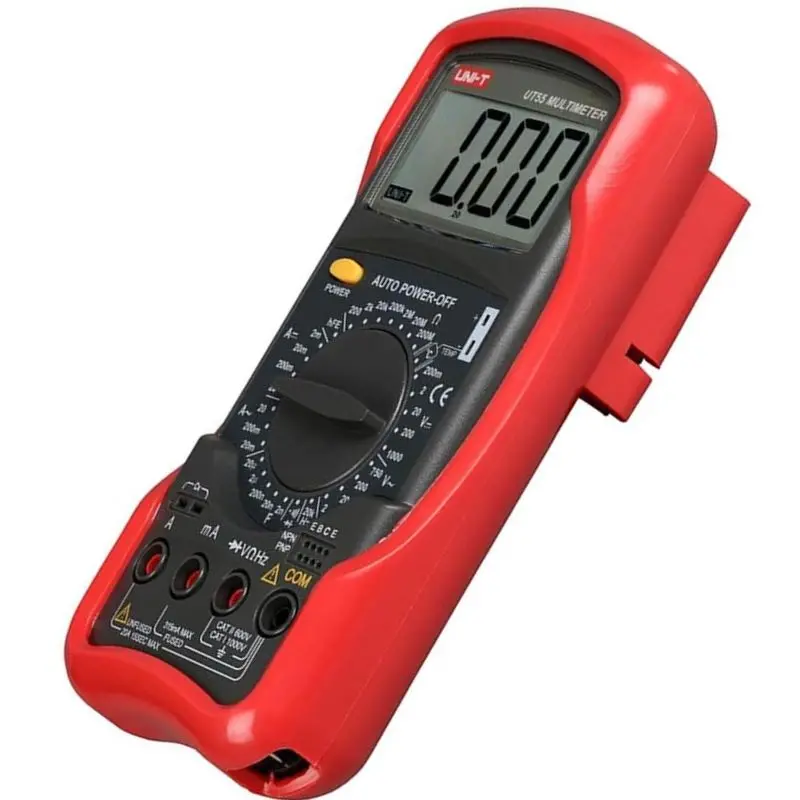

| Model | UT55 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| DC Current (A) | 2mA/20mA/200mA/20A | ±(0.8%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| AC Current (A) | 20mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF | ±(4%+3) |
| Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) |
| 20kHz | ±(1.5%+5) | |
| Temperature (°C) | 20℃～1000℃ | ±(1%+3) |
| Features | ||
| Transistor | √ | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Sleep Mode | √ | |
| Low Battery Display | √ | |
| Input Impedance for DC Voltage Measurement | 10MΩ | √ |
| Max. Display | 1999 | √ |
| General Characteristic | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 65mm×33mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 580g (including holster)） | |
| Product Size | 190mm×88mm×34mm | |
| Standard Accessories | Test Lead Battery Holster Point type temperature probe | |
| Standard Packing | Gift Box English Manual | |
| Standard Quantity Per Carton | 20 Pcs | |
| Standard Carton Measurement | 535mm×362mm×385mm | |
| Standard Carton Gross Weight | UT5420.5kg，UT5517.4kg | |
| Optional Accessories* | ClipOn Test Lead Light (UTTL) BuiltIn Test Lead Light (UTL1) BuiltIn Test Lead Light Plus (UTL2) | |
