Description

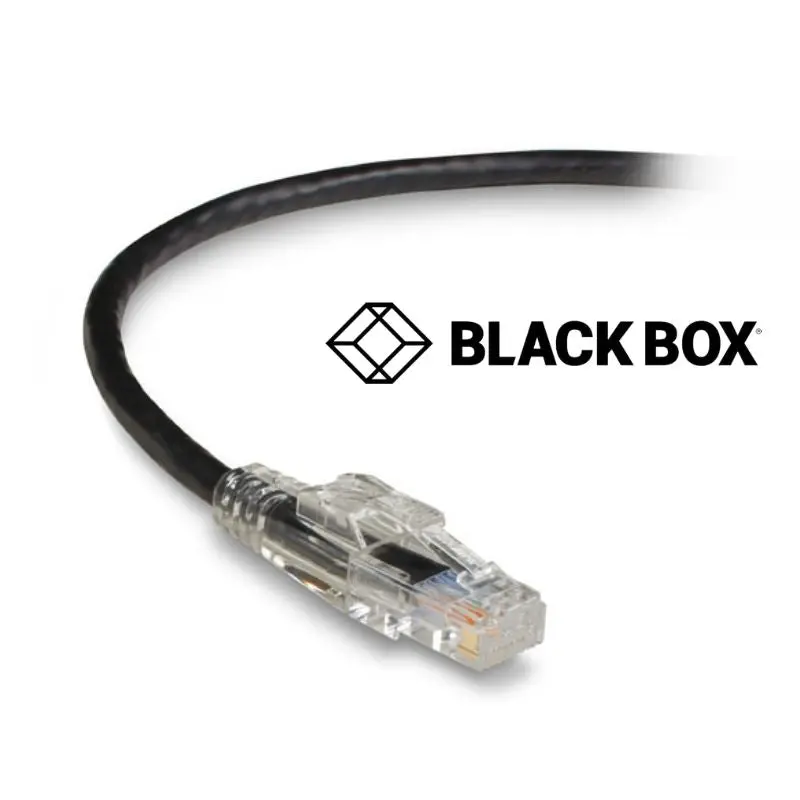

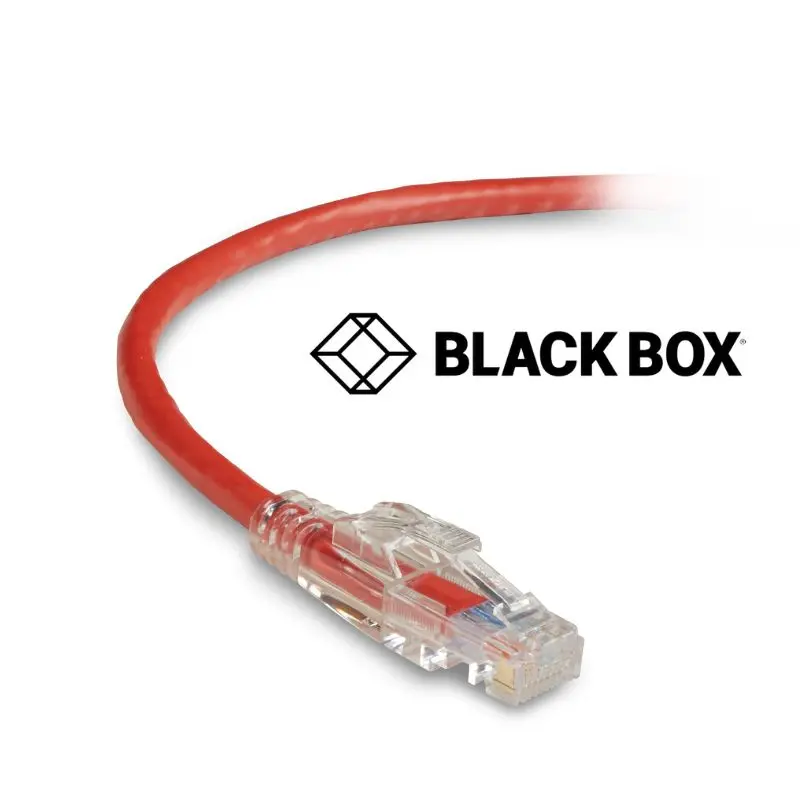

GigaTrue® 3 CAT6 550MHz Lockable Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M) Use for all your network connections. Insert the optional Locking Pin to lock down ports. Tested to 550 MHz. Prevent unauthorized personnel from disrupting vital network connections. Protect publicly accessible network connections. Avoid downtime from accidental disconnects. Cables stay locked in placeuntil YOU take them out.
| ACR | 20.5 dB at 100 MHz; 0 dB at 250 MHz |
| ACRF | 27.8 dB at 100 MHz; 19.8 dB at 250 MHz 13.0 at 550 MHz |
| Capacitance Unbalance | Pair to ground: 330 pF/100 m maximum |
| Conductor Gauge | 24 AWG stranded UTP CM |
| DC Resistance Unbalance | 5% maximum |
| Delay Skew | 40 ns/100 m (328 ft.) maximum |
| Diameter | 0.22 (5.7 mm) |
| Impedance | 100 ± 15 ohms at 100 MHz; 100 ± 22 ohms at 100550 MHz |
| Insertion Loss (Maximum) | 23.8 dB at 100 MHz; 39.3 dB at 250 MHz; 62.2 dB at 550 MHz |
| Jacket | PVC CM |
| Mutual Capacitance | 56 pF/m maximum |
| NEXT | 44.3 dB at 100 MHz; 38.3 dB at 250 MHz; 33.2 dB at 550 MHz |
| Propagation Delay | 550 MHz 535.5 ns/100 m maximum |
| PSACR | 18.5 dB at 100 MHz |
| PSACRF | 24.8 dB at 100 MHz; 16.8 at 250 MHz; 10.0 at 550 MHz |
| PSNEXT | 42.3 dB at 100 MHz; 36.3 dB at 250 MHz; 31.2 dB at 550 MHz |
| Resistance | 9.09 ohms/100 m (328 ft.) |
| Return Loss | 19.0 dB at 100 MHz; 15.6 dB at 250 MHz |
| Standards | TIA/EIA568C.2 Category 6; ISO/IEC 11801 Class E; UL® 444; EN713 EPA 3050B; 2002/95/EC RoHS |
| Structured Return Loss | 22.5 dB at 100 MHz; 20.5 dB at 250 MHz |
| Item Specifications | |
| Connector A Type/Gender | (1) RJ45 (Male) |
| Connector B Type/Gender | (1) RJ45 (Male |
