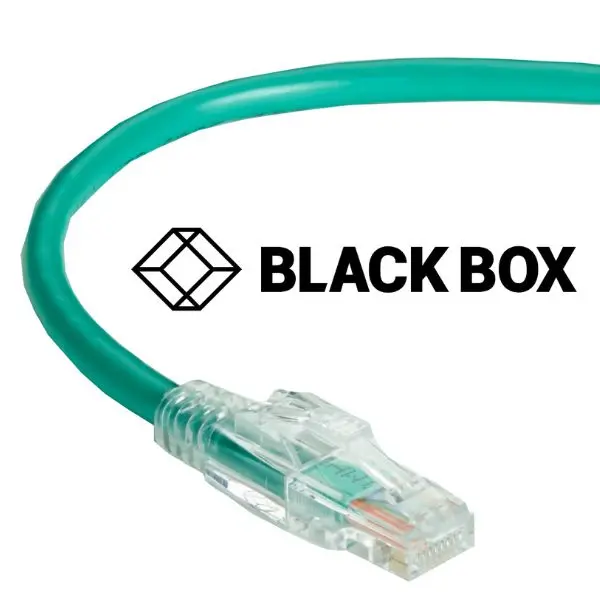

Cat5e Snagless Ethernet Patch Cable – Green, 10 Feet

Description

Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M),,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, GigaBase 3 Premium Cable constructed to exceed industry standards,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Cable tested to 350 MHz surpassing 100MHz CAT5e standard,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Cabling ETL verified to ANSI/TIA568C.2,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, 50micron goldplated contacts provide superior conductivity,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Connector designed for an insertion and extraction life of 750 cycles,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Offers superior nearend crosstalk (NEXT) compared to standard CAT5E cable,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Snagless boots prevent connector damage due to snags during installation,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Ideal for highspeed applications

• Connect line of basic cabling is constructed to industry standards
• Tested to exceed CAT5e industry standard of 100 MHz
• Cabling is ETL verified to ANSI/TIA568C2
• Snagless boots prevent connector damage due to snags during installation
• Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications

• Approvals	RoHS CE UL/cUL
  Return Loss (Minimum)	19dB at 100MHz
  Impedance	100+/15 ohms
  NEXT (Minimum)	35.3dB at 100MHz
  Connector Plating	Gold Flash
  Shielded	No
  Snagless Connector	Yes
  Standards	TIA/EIA568C.2 Category 5e
  Attenuation (Maximum)	22.5dB at 100MHz
  Cable Type	Stranded
  PSNEXT (Minimum)	32.3dB at 100MHz
  Conductor	26 AWG
  Frequency	Up to 100 MHz
  Jacket	CM PVC
  Item Specifications
  Connector A Type/Gender	(1) RJ45 (Male)
  Connector B Type/Gender	(1) RJ45 (Male)
