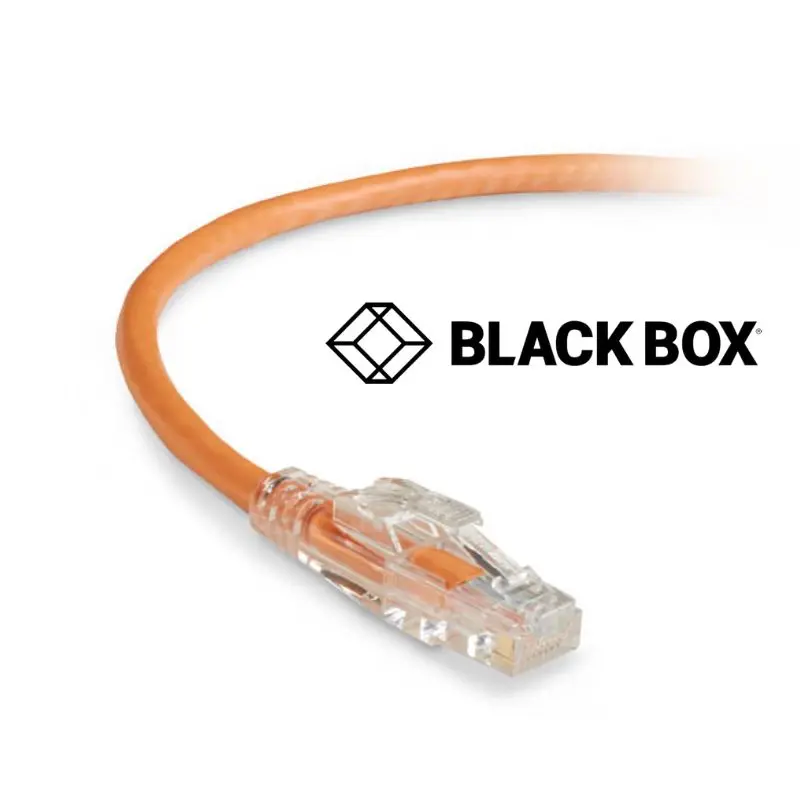

Cat6 Orange Ethernet Patch Cable – 5 ft, Snagless Boot for Quick Connections

Description

GigaTrue® 3 CAT6 550MHz Locking Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M) Two levels of lockability Cable tested to 550 MHz surpassing 250MHz CAT6 standard Cabling ETL verified to ANSI/TIA568C2 50micron goldplated contacts provide superior conductivity Connector designed for an insertion and extraction life of 750 cycles Superior nearend crosstalk (NEXT) compared to standard CAT6 cable Snagless boots prevent connector damage due to snags during installation Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications

• Two levels of lockability
• Cable tested to 550 MHz surpassing 250MHz CAT6 standard
• Cabling ETL verified to ANSI/TIA568C2
• 50micron goldplated contacts provide superior conductivity
• Connector designed for an insertion and extraction life of 750 cycles
• Superior nearend crosstalk (NEXT) compared to standard CAT6 cable
• Snagless boots prevent connector damage due to snags during installation
• Ideal for 1000BASET 100BASETX 10BASET and other highspeed applications.

• Electrical Performance
  Attenuation	(Maximum) 39.4dB at 250 MHz 62.1dB at 550MHz
  NEXT	(Minimum) 38.3db at 250MHz 33.1dB at 550MHz
  PSNEXT	(Minimum) 36.3dB at 250MHz 31.2dB at 550MHz
  Return Loss	(Minimum) 15.3dB at 250MHz 2.98dB at 550MHz
  General
  Approvals	RoHS CE UL/cUL
  Conductor Gauge	24 AWG
  Impedance	100+/15 ohms
  Jacket	CM PVC
  Cable Frequency	Up to 550 MHz
  Connector Type	Snagless
  Conductor Type	Stranded
  Connector Plating	50µ
  Standards	TIA/EIA568C.2 CAT6
  Item Specifications
  Connector A Type/Gender	(1) RJ45 (Male)
  Connector B Type/Gender	(1) RJ45 (Male)
  Specifications
  Shielding	UTP
