Dual-Voltage Transformer: 12.6V@2A or 6.3V@4A, 115–230V Input

Description

Features

• Dual primary 115/230 VAC
• 50/60 Hz. operation

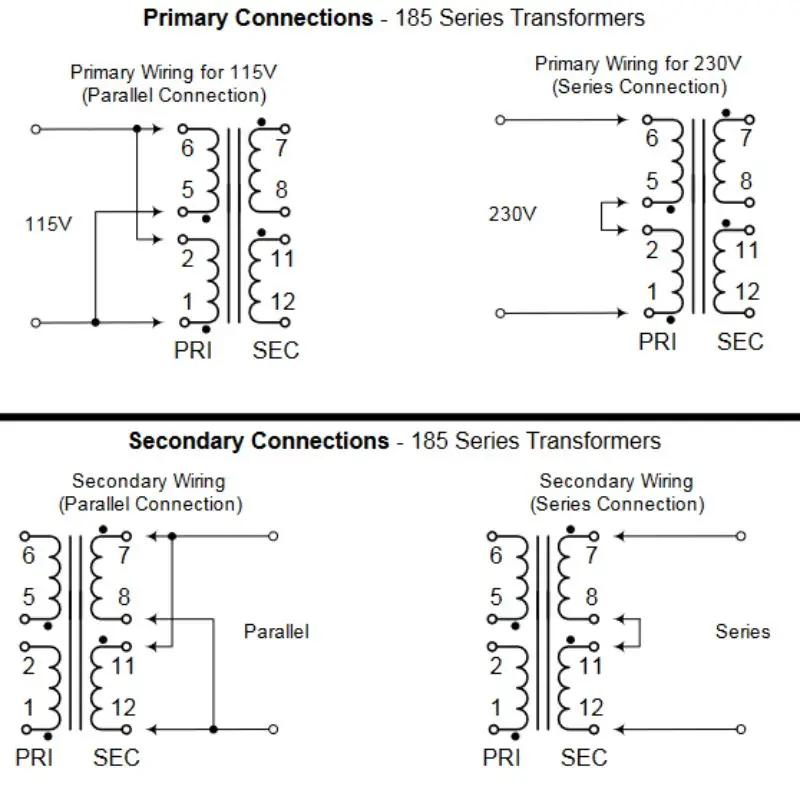

• Dual secondaries for series or parallel connections
• 4 000 V RMS Hipot test
• Class F insulation (155 degrees C)
• Chassis mount (either two or four hole depending on size)
• Dual bobbin construction
• Dual use terminals (solder lug or quick connect)
• C UL US recognized (E207860)
• CE certified to IEC 950 (Approved to EN 60742 Safety Isolating Transformers)
