Description

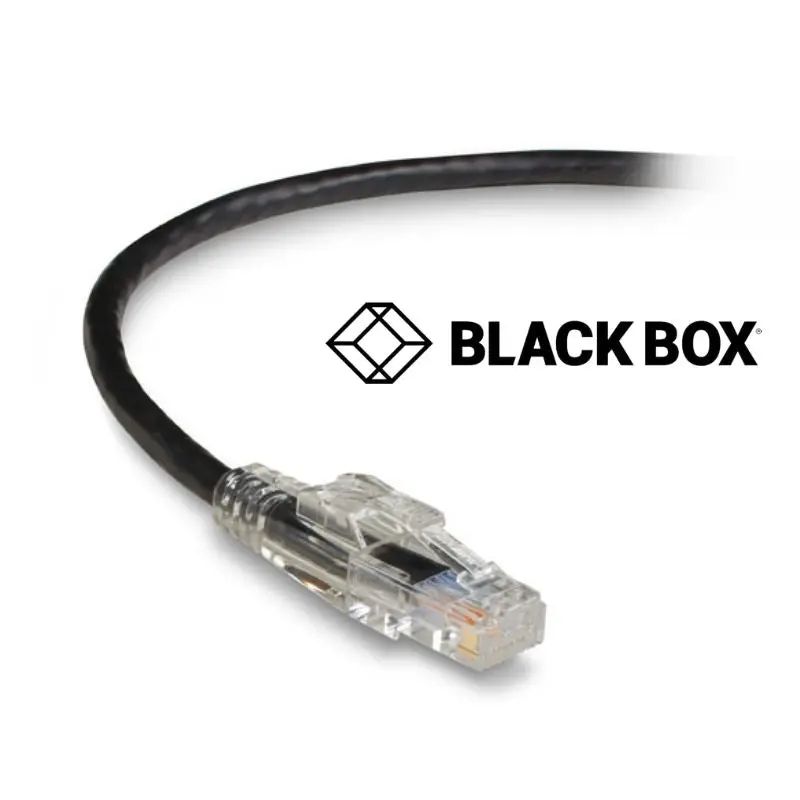

SlimLine CAT5e 100MHz Molded Boot Solid Ethernet Patch Cable Shielded (F/UTP) CMP Plenum (RJ45 M/M)
Shielded CAT5e cable ensures optimal performance in noisy Fast Ethernet networking environments where plenum rating is required.
- Protects against EMI/RFI interference
- Plenumrated jacketing for use in ducts plenums and spaces used for environmental air
- Cable tested to 350 MHz surpassing 100MHz CAT5e standard
- Cabling ETL verified to ANSI/TIA568C2
- 50micron goldplated contacts provide superior conductivity
- Molded slimline boots ideal for highdensity applications
- Connector designed for an insertion and extraction life of 750 cycles
- Perfect for 1000BASET 100BASETX 10BASET and other highspeed applications
| General | |
| Impedance | 100+/15 ohms |
| Jacket | CMP Plenum |
| Standards | TIA/EIA568C.2 Category 5e |
| Connector Plating | 50µ |
| Cable Type | Solid |
| Frequency | Up to 350 MHz |
| Shielded | F/UTP |
| Attenuation (Maximum) | 22.5 dB at 100 MHz 44.9 dB @ 350 MHz |
| Return Loss (Minimum) | 20 dB at 100 MHz 16.3 dB @ 350 MHz |
| PSNEXT (Minimum) | 32.3 dB at 100 MHz 24.1 dB @ 350 MHz |
| Approvals | RoHS CE UL/cUL |
| NEXT (Minimum) | 35.3 dB at 100 MHz 27.1 dB @ 350 MHz |
| Snagless Connector | No |
| Conductor Gauge | 24 AWG |
| Conductor Type | Solid |
| Item Specifications | |
| Connector A Type/Gender | (1) RJ45 (Male) |
| Connector B Type/Gender | (1) RJ45 (Male) |
