Description

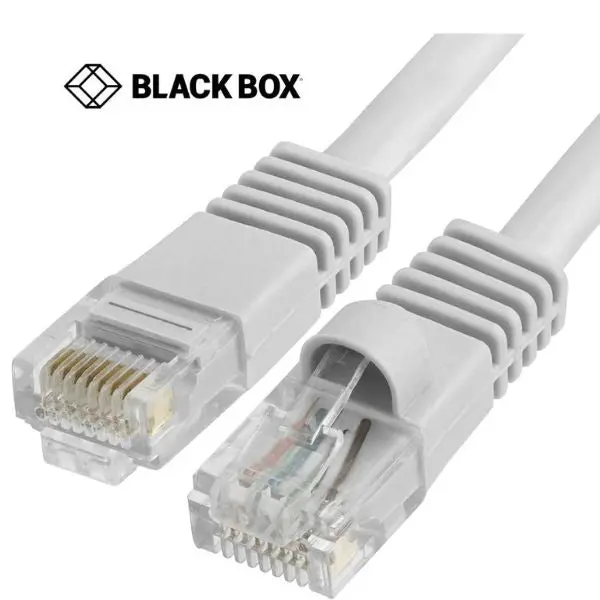

GigaTrue® CAT6 550MHz Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)

• Constructed to exceed industry standards
• Tested to 550 MHz surpassing 250MHz CAT6 standard
• Cabling ETL verified to ANSI/TIA568C2
• 50micron goldplated contacts provide superior conductivity
• Connector designed for an insertion and extraction life of 750 cycles
• Offers superior nearend crosstalk (NEXT) compared to standard CAT6 cable
• Snagless boots prevent connector damage due to snags during installation
• This cable is ideal for 1000BASET 100BASETX 10BASET and other highspeed applications

• Approvals	RoHS CE UL/cUL
  Connector Plating	50μ
  Shielded	No
  Return Loss (Minimum)	15.6dB at 250MHz 2.60dB at 550MHz
  NEXT (Minimum)	38.3db at 250MHz 33.2dB at 550MHz
  PSNEXT (Minimum)	36.3dB at 250MHz 31.2dB at 550MHz
  Snagless Connector	Yes
  Attenuation (Maximum)	40.5dB at 250 MHz 62.1dB at 550MHz
  Cable Jacket	CM PVC
  Cable Type	Stranded
  Conductor Gauge	24 AWG
  Frequency	Up to 550 MHz
  Impedance	100 ± 15 ohms
  Standards	TIA/EIA568C.2 Category 6
  Item Specifications
  Connector A Type/Gender	(1) RJ45 (Male)
  Connector B Type/Gender	(1) RJ45 (Male)
