Description

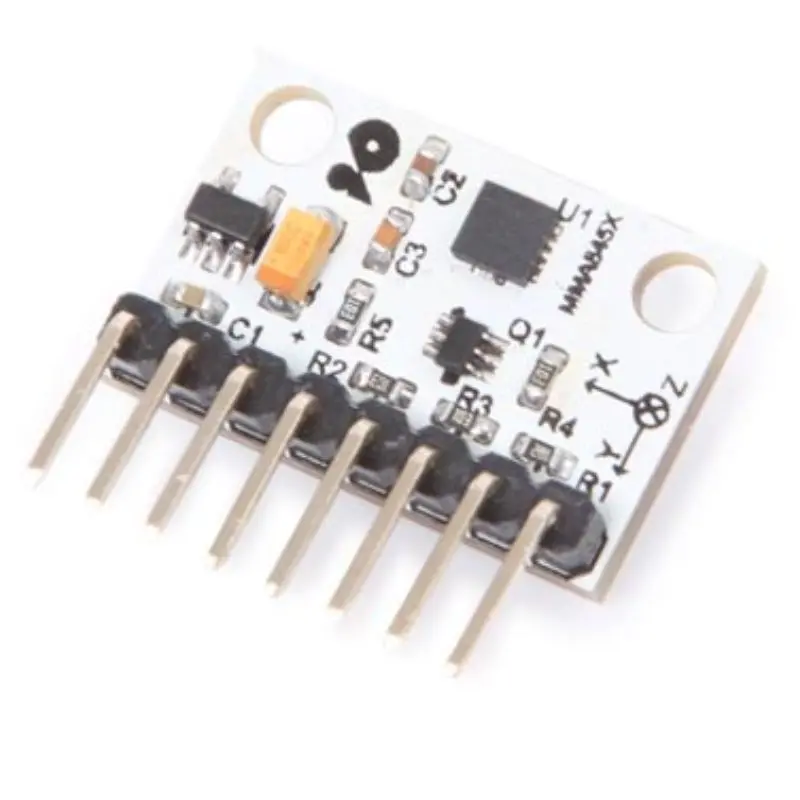

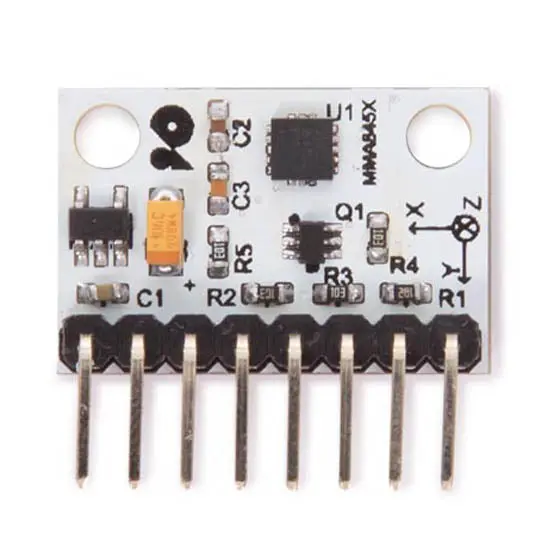

The MMA8452Q accelerometer module is a smart lowpower threeaxis capacitive MEMS accelerometer with 12 bits of resolution. It is packed with embedded functions with flexible user programmable options configurable to two interrupt pins. Embedded interrupt functions allow for overall power savings relieving the host processor from continuously polling data. It has user selectable full scales of +2g/+4g/+8g with high pass filtered data as well as non filtered data available realtime.
Features
+2g/+4g/+8g dynamically selectable fullscale
output data rates (ODR) from 1.56 Hz to 800 Hz
12bit and 8bit digital output
I2C digital output interface (operates to 2.25 MHz with 4.7 kO pullup)
two programmable interrupt pins for six interrupt source
three embedded channels of motion detection
orientation (portrait/landscape) detection with set hysteresis
high pass filter data available realtime
Specifications
supply voltage: 1.95 V 3.6 V
interface voltage: 1.6 V 3.6 V
current consumption: 6 µA 165 µA
