PRC-1 PIC-Based Relay Controller for Automation and Prototyping

Description

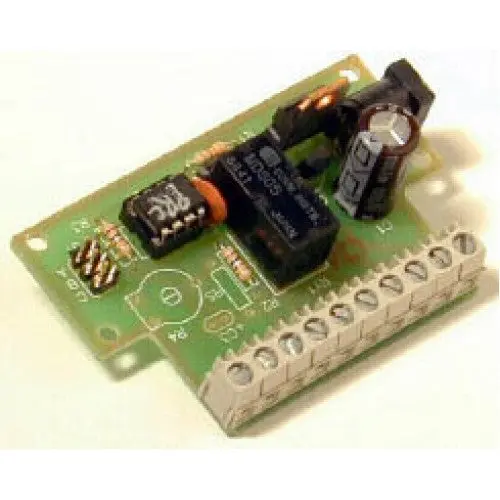

Multi Mode relay board based on a pre programmed PIC 12C509 microcontroller IC.
Board features: DPDT Relay rated: 2A 30VDC /1A 120VAC resistive.
Selectable active High or active Low trigger input.
Delay 1: Immediate turn on with fixed .5sec delay on turn off OR variable 1.5sec14sec delay on turn off.
Delay 2: Immeidate turn on with fixed 10sec delay on turn off OR variable 11sec24sec delay on turn off.
On/Off Toggle: Relay remains on until another input is received.
Latch Mode: Relay remains on until a valid reset is received.
Relay is Ul/CSA listed. Terminal strip for trigger & reset in and relay contacts out. Includes plug supply.
