Description

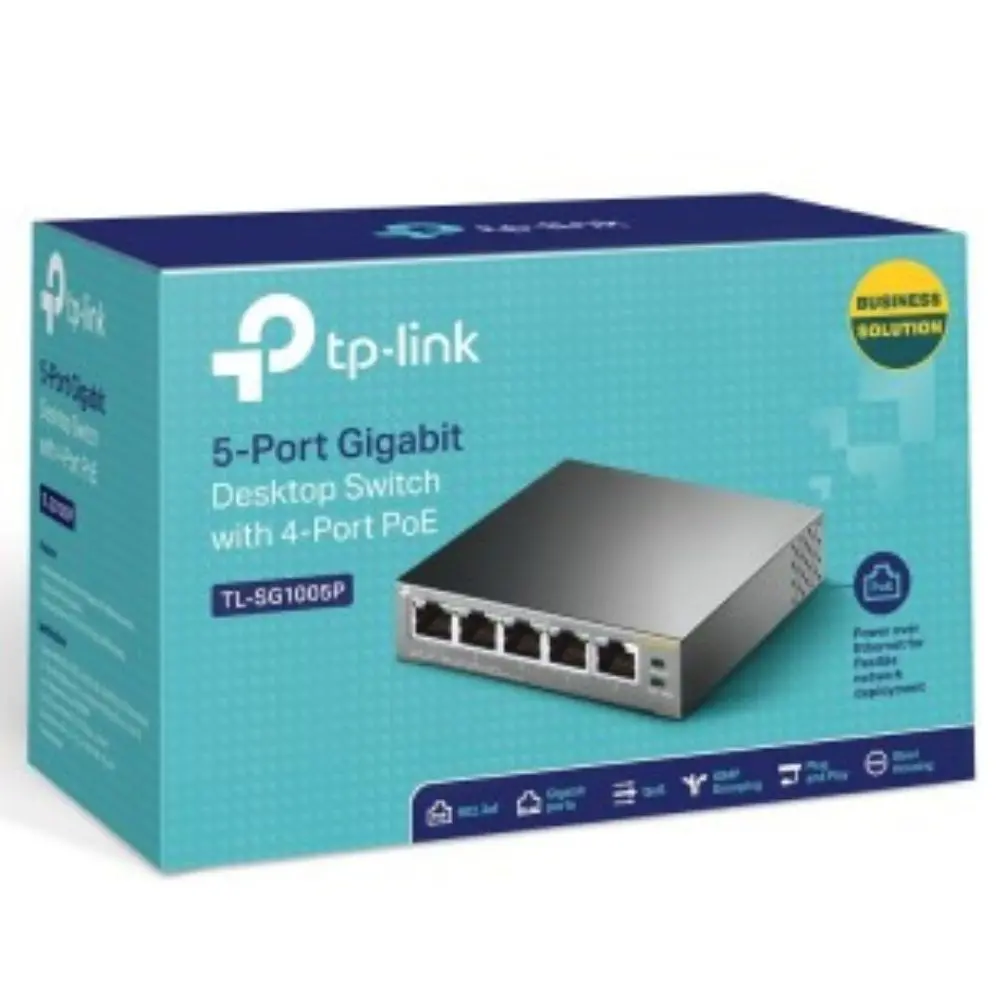

TPlink SG1005P 5Port Gigabit Desktop Switch with 4Port PoE
Flexible Full Gigabit 5Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 65W together w/ 1x Gigabit NonPoE Port for highspeed connections.
Plugandplay simple set up with no software or configuration needed
Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Portbased 802.1p/DSCP QoS and IGMP Snooping.
Sturdy Metal Case: Durable metal casing and desktop/wallmounting design are wellsuited for different environments.
Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.
Interfaces 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
Protocols AutoMDIX/MDI
IGMP Snooping
Supported Protocols Port Mirroring
Transmission Method StoreandForward
Jumbo Frames Support 16 000 Bytes
MAC Address Table Size 2K
VLAN Groups 32
Security Features Storm Control
Standards Supported IEEE Standards
802.1p 802.3ab 802.3af 802.3at 802.3i 802.3p 802.3q 802.3u 802.3x
Performance
Forwarding Rate 7.44 Mpps
Switching Bandwidth 10 Gb/s
Priority Queues 4
Packet Buffer 1.5 Mb
Electrical
Power Draw 74.2 W (Max)
DC Input Power 53.5 VDC at 1.31 A
AC Input Power 100 to 240 VAC 50 / 60 Hz
PoE Power Budget 65 W
PoE per Port 30 W
Power Supply Type External
