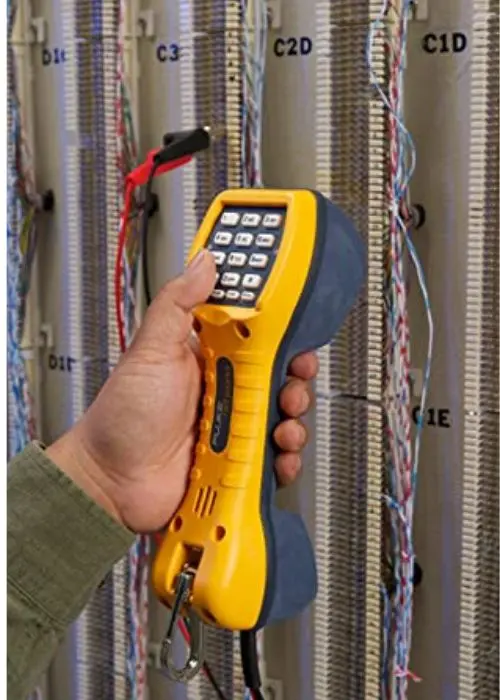

TS30 Analog Telephone Test Set – Angled Bed-of-Nails Clips, Model 30800009

Description

The TS30 features the latest in telephone test set case design at an affordable price.

• High impedance DataSafe^TM operation in monitor mode
• DropSafe^TM reliability passes 20foot drop test
• RainSafe^TM protection in severe weather conditions
• Mute switch
• Last number redial
• Audible ringer for callbacks

Electrical Specs

Return Loss              >14 dB (ref 600 )

Line Current Range             15 mA to 120 mA

Resistance to Continuous Current (Talk Mode)                 275 typical at 20 mA

Monitor Mode Impedance              >120 000 300 Hz to 3400 Hz

Pulse Dial Output

Pulsing Rate                            10 pps pps

Open/Close Ratio                  60/40

Interdigit Interval                 800 ms % 10%

Resistance During Pulse Open               > 200 000

Protection Against Alternating Current Overvoltage

The TS30 survives up to 250 Vrms across its test leads.

Peak Acoustic Output of the Receiver                    <120 dBspl

DTMF Output Tone Frequencies Tone Frequency Error                per ITUT Q.23 1.5% Maximum

Tone Level

High Group Low Group              4 dBm (into 600 ) 6 dBm (into 600 )

High vs Low Tone Difference         2dB +1db

Last Number Redial (Tone/Pulse)

Memory Capacity Memory Retention         23 digits 8minutes nominal

Flash Duration                        600 ms 100 ms

Ringer Loudness                  > 70 dBA at 1 meter

Ringer Equivalent (REN)       0.14
