Description

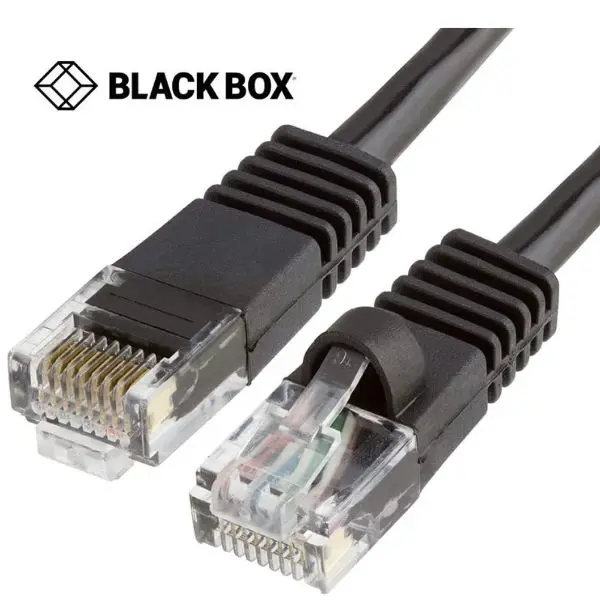

GigaBase® CAT6 550MHz Snagless Stranded Ethernet Patch Cable Unshielded (UTP) CM PVC (RJ45 M/M)

• Constructed to exceed industry standards
• Tested to 350 MHz surpassing 100MHz CAT5e standard
• Cabling ETL verified to ANSI/TIA568C2
• 50micron goldplated contacts provide superior conductivity
• Connector designed for an insertion and extraction life of 750 cycles
• Offers superior nearend crosstalk (NEXT) compared to standard CAT5e cable
• Snagless boots prevent connector damage due to snags during installation
• The cable is ideal for 1000BASET 100BASETX 10BASET and other highspeed applications

• General
  Approvals	RoHS CE UL/cUL
  Snagless Connector	Yes
  Shielded	No
  Connector Plating	50μ
  Attenuation (Maximum)	22.5dB at 100MHz 45.8dB @ 350MHz
  Cable Type	Stranded
  Conductor Gauge	24 AWG
  Frequency	Up to 350 MHz
  Impedance	100 ± 15 ohms
  Jacket	CM PVC
  NEXT (Minimum)	35.3dB at 100MHz 27.1dB at 350MHz
  PSNEXT (Minimum)	32.3dB at 100MHz 24.1dB at 350MHz
  Return Loss (Minimum)	19dB at 100MHz 4.56dB at 350MHz
  Standards	TIA/EIA568C.2 Category 5e
  Item Specifications
  Connector A Type/Gender	(1) RJ45 (Male)
  Connector B Type/Gender	(1) RJ45 (Male)
