Description

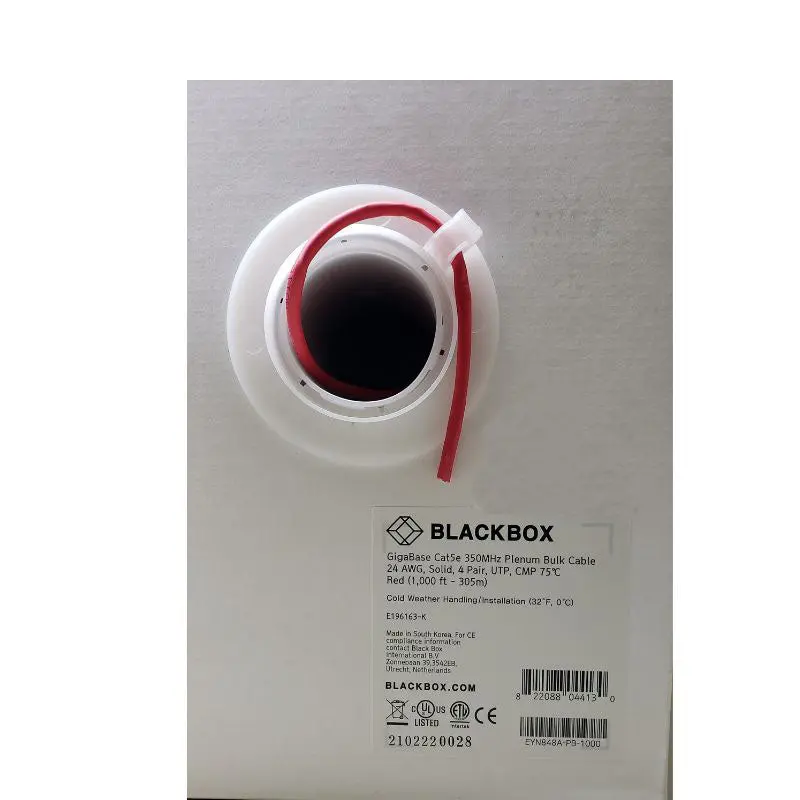

GigaBase® CAT5e 350MHz Solid Ethernet Bulk Cable Unshielded (UTP) CMR PVC 1000ft. (304.8m) PullBox

• Cold Weather handling/Installation (32degree F 0 degree C)
• Sweep tested and characterized to 350 MHz
• CAT5e compliance means dependable compatibility for future applications
• Ideal for voice 10BASET 4/16Mbps Token Ring 100BASETX 100Mbps TPPMD T1 155Mbps ATM 622Mbps ATM
• Low attenuation and powersum crosstalk characteristics over an extended frequency range
• Longitudinal rip cord for easy jacket opening
• AccuPull Measuring System
• Descending sequential twofoot markings on cable
• TAA Compliant GSA Certified ETL Component Level Verified

• 	ACR (Minimum at 100 m) 16.3 dB at 100 MHz; 1.4 dB at 200 MHz Attenuation (Minimum at 100 m) 22.0 dB at 100 MHz; 32.4 dB at 200 MHz; 41.0 dB at 300 MHz; 44.9 dB at 350 MHz Cable Type 4pair UTP Capacitance Unbalance (Maximum) 3300 pF/km (Pair to ground) Characteristic Impedance 1–350 MHz: 100 ± 15 ohms Conductor 24 AWG solid bare copper Conductor Resistance 93.8 ohm/68° F (20° C) maximum Delay Skew (Maximum) 1–350 MHz: 40 nS/100 m ELFEXT (Minimum at 100 m) 23.8 dB at 100 MHz; 17.7 dB at 200 MHz; 14.2 dB at 300 MHz; 12.9 dB at 350 MHz NEXT (Minimum at 100 m) 38.3 dB at 100 MHz; 33.8 dB at 200 MHz; 31.2 dB at 300 MHz; 30.1 dB at 350 MHz PSACR 14.3 dB at 100 MHz PSELFEXT 20.8 dB at 100 MHz; 14.7 dB at 200 MHz; 11.2 dB at 300 MHz; 9.9 dB at 350 MHz PSNEXT 36.3 dB at 100 MHz; 31.8 dB at 200 MHz; 29.2 dB at 300 MHz; 28.1 dB at 350 MHz Return Loss 20.1 dB at 100 MHz Velocity of Propagation 62.1% at 350 MHz
